EMCoS Studio 2024 Release Highlights

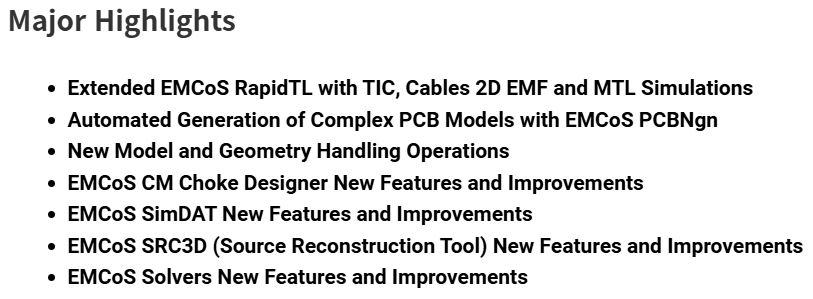

Major Highlights


  • Extended EMCoS RapidTL with TIC, Cables 2D EMF and MTL Simulations
  • Automated Generation of Complex PCB Models with EMCoS PCBNgn
  • New Model and Geometry Handling Operations
  • EMCoS CM Choke Designer New Features and Improvements
  • EMCoS SimDAT New Features and Improvements
  • EMCoS SRC3D (Source Reconstruction Tool) New Features and Improvements
  • EMCoS Solvers New Features and Improvements


    EMCoS RapidTL for Arbitrary Cables Modeling
    Transfer Impedance Calculation in Virtual Triaxial Setup
      • Support of Range and List Variables for Shield ZT Parametric Investigations
      • Expanded 3D Cable View and Composition Tree Functionality
      • Computational Tasks Support for ZT Simulations in TIC Mode with ZT3D Solver
      • Undo/Redo and History Operations List
      • Visualization of Ground and Outer Tube Objects in 2D & 3D
      • Improved Indication of Spiral and Helical Tape Wrap Rotation Directions

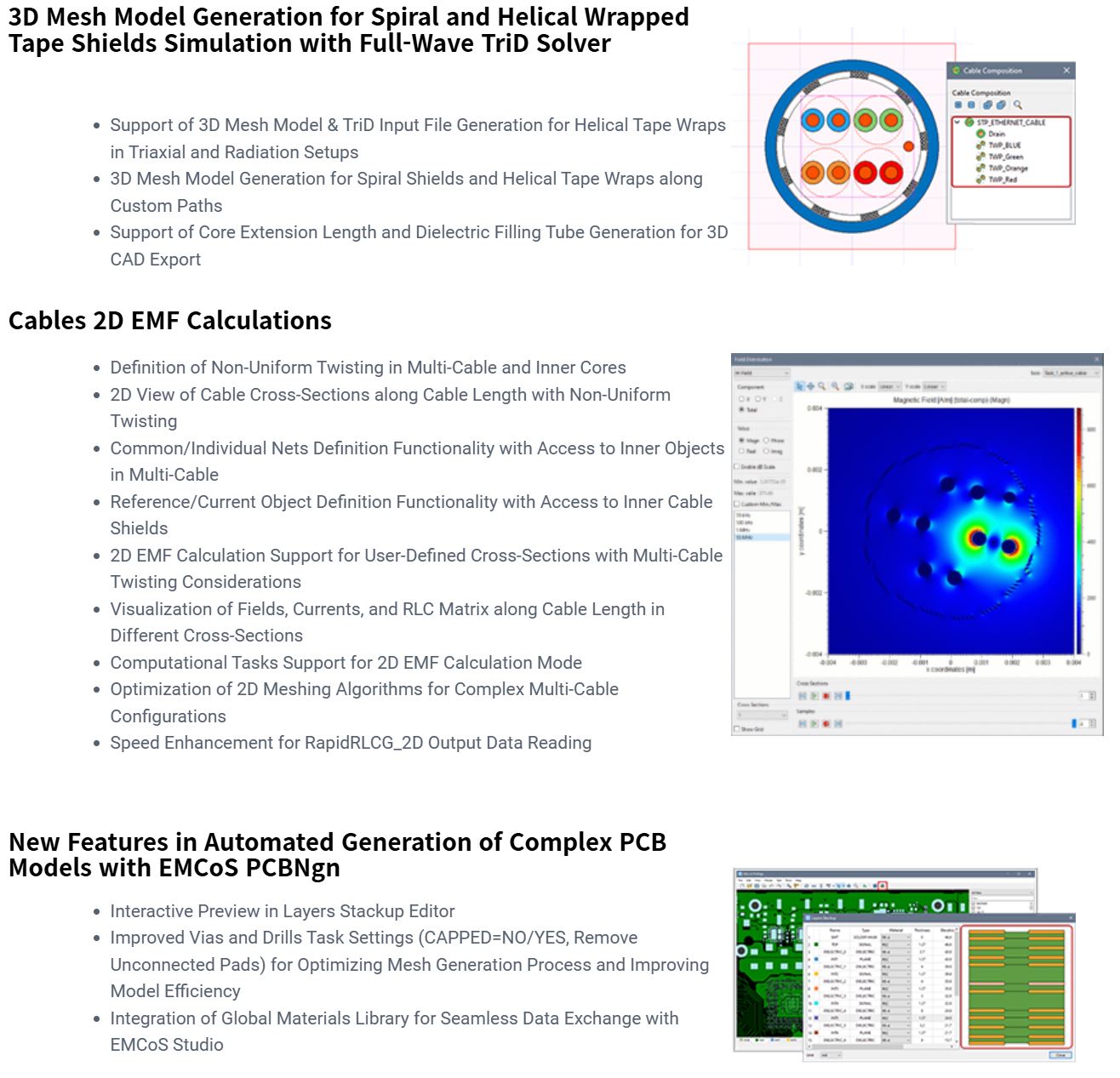

      3D Mesh Model Generation for Spiral and Helical Wrapped Tape Shields Simulation with Full-Wave TriD Solver

        • Support of 3D Mesh Model & TriD Input File Generation for Helical Tape Wraps in Triaxial and Radiation Setups
        • 3D Mesh Model Generation for Spiral Shields and Helical Tape Wraps along Custom Paths
        • Support of Core Extension Length and Dielectric Filling Tube Generation for 3D CAD Export

        Cables 2D EMF Calculations
          • Definition of Non-Uniform Twisting in Multi-Cable and Inner Cores
          • 2D View of Cable Cross-Sections along Cable Length with Non-Uniform Twisting
          • Common/Individual Nets Definition Functionality with Access to Inner Objects in Multi-Cable
          • Reference/Current Object Definition Functionality with Access to Inner Cable Shields
          • 2D EMF Calculation Support for User-Defined Cross-Sections with Multi-Cable Twisting Considerations

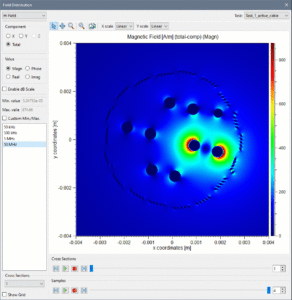

          • Visualization of Fields, Currents, and RLC Matrix along Cable Length in Different Cross-Sections
          • Computational Tasks Support for 2D EMF Calculation Mode
          • Optimization of 2D Meshing Algorithms for Complex Multi-Cable Configurations
          • Speed Enhancement for RapidRLCG_2D Output Data Reading



        New Features in Automated Generation of Complex PCB Models with EMCoS PCBNgn
          • Interactive Preview in Layers Stackup Editor
          • Improved Vias and Drills Task Settings (CAPPED=NO/YES, Remove Unconnected Pads) for Optimizing Mesh Generation Process and Improving Model Efficiency
          • Integration of Global Materials Library for Seamless Data Exchange with EMCoS Studio

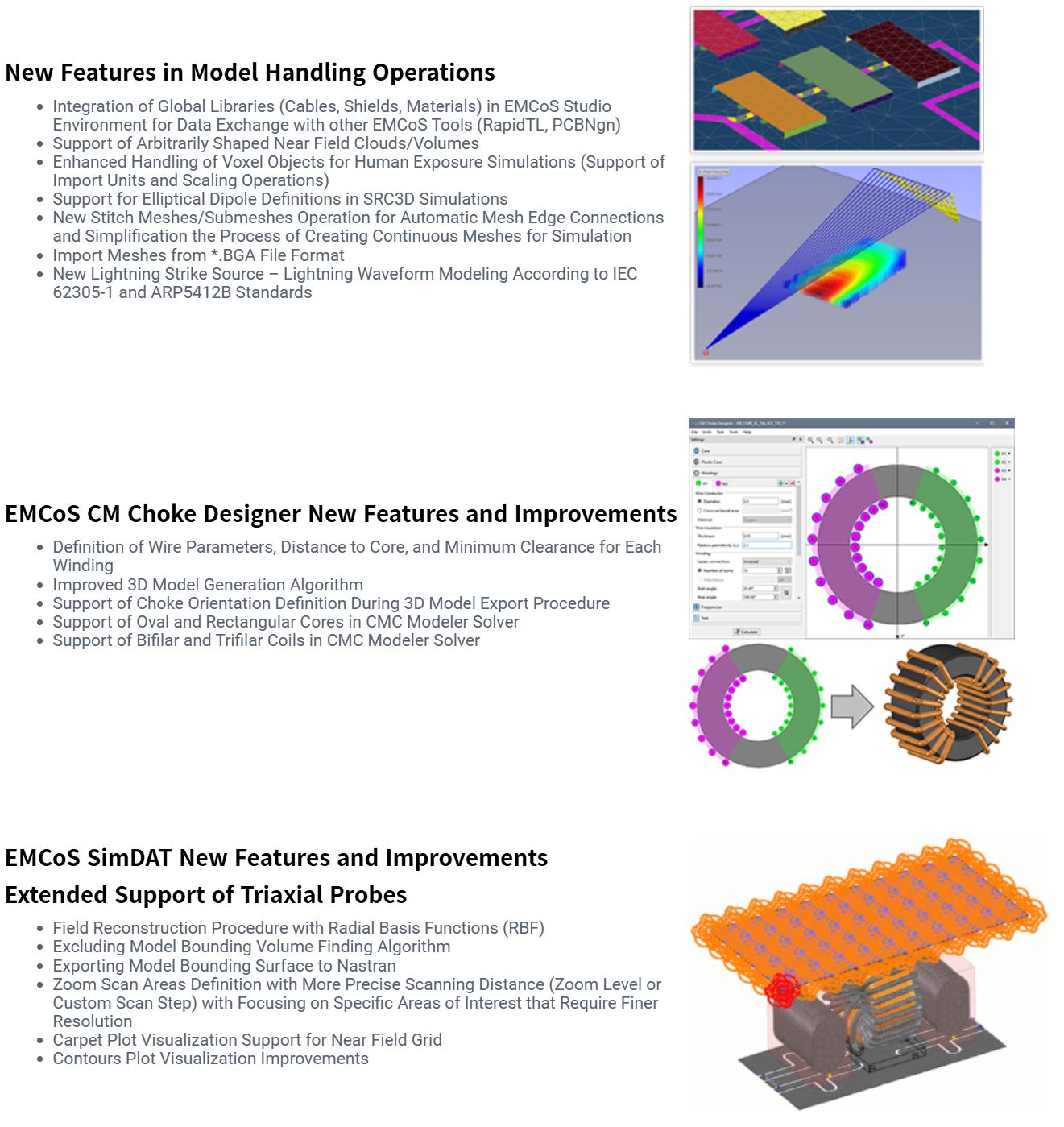

        New Features in Model Handling Operations
        • Integration of Global Libraries (Cables, Shields, Materials) in EMCoS Studio Environment for Data Exchange with other EMCoS Tools (RapidTL, PCBNgn)

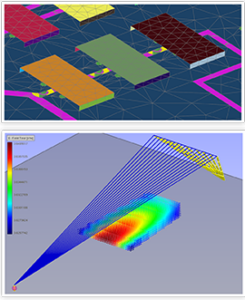

        • Support of Arbitrarily Shaped Near Field Clouds/Volumes
        • Enhanced Handling of Voxel Objects for Human Exposure Simulations (Support of Import Units and Scaling Operations)
        • Support for Elliptical Dipole Definitions in SRC3D Simulations
        • New Stitch Meshes/Submeshes Operation for Automatic Mesh Edge Connections and Simplification the Process of Creating Continuous Meshes for Simulation
        • Import Meshes from *.BGA File Format
        • New Lightning Strike Source – Lightning Waveform Modeling According to IEC 62305-1 and ARP5412B Standards




        EMCoS CM Choke Designer New Features and Improvements
        • Definition of Wire Parameters, Distance to Core, and Minimum Clearance for Each Winding
        • Improved 3D Model Generation Algorithm
        • Support of Choke Orientation Definition During 3D Model Export Procedure
        • Support of Oval and Rectangular Cores in CMC Modeler Solver
        • Support of Bifilar and Trifilar Coils in CMC Modeler Solver



        EMCoS SimDAT New Features and Improvements

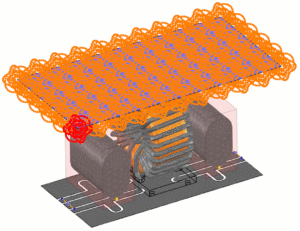

        Extended Support of Triaxial Probes
        • Field Reconstruction Procedure with Radial Basis Functions (RBF)
        • Excluding Model Bounding Volume Finding Algorithm
        • Exporting Model Bounding Surface to Nastran
        • Zoom Scan Areas Definition with More Precise Scanning Distance (Zoom Level or Custom Scan Step) with Focusing on Specific Areas of Interest that Require Finer Resolution
        • Carpet Plot Visualization Support for Near Field Grid
        • Contours Plot Visualization Improvements



        Other Improvements and User Requests
        • SAR and Human Exposure @ 100 kHz – 6 GHz: Update the Averaged SAR Calculation According to Recent International Standard IEC/IEEE 62704-1
        • Support Expressions for Polar Plot Curves

        EMCoS SRC3D (Source Reconstruction Tool) New Features and Improvements
        • New Matrix Based Algorithm for Cloud of Dipoles
        • Support of Multiple Measurement Surfaces
        • Support of Electric Equivalent Dipoles
        • Dipoles Polarization Definition (Elliptical/Linear)
        • Support of Mixed Electric and Magnetic Dipoles Cloud
        • Log File Generation with Output Information



        New Features in EMCoS Solvers
        • [LFMF] – Support of Multi Excitation Calculations
        • [Hybrid MTL] – Support of Calculation Stages for Radiation + Stochasticity Analysis
        • [Hybrid MTL] – Improved Generation of Grounding Wires for Connectors
        • [TSReady/BURNS] – Output Information about Partitioning and Interface Nodes in a Log File
        • [TSReady/BURNS] – Burning Packs Processing
        • Minor Improvements and User-Requests
