Huwin provides high-precision measurement of high-frequency signal transmission connectors, cables, and PCBs, as well as test fixture design/measurement and consulting services for this, based on ultra-high frequency engineering experience and patented technology.
Measurement/consulting service items
- 900Hz~50GHz 4-port Network Parameter Measurement (SYZ-Parameters)
- TDR Impedance : rise time(min) 8.92ps , resolution (er=1, min) 1.3mm

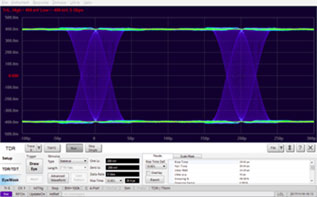

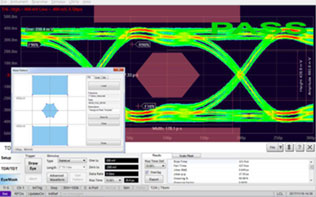

- Eye Diagram data rate (max) : 40 Gb/s
- Multi-Port Differential Signal Path Insertion/Return Loss/Cross-talk/ Diff.-to-Comm. Transition measurement
- Test Kit and Deembedding Software for Deembedding Measurement Test Fixtures
- High-speed signal transmission Interconnection characteristic measurement and optimization guide support
Holding measuring equipment
- Keysight's PNA Microwave Network Analyzer
-
N5225B-405 4-port with second source, configurable test set,
reference mixer switch, low frequency extension - Enhanced Time Domain Analysis with TDR
- Rugged phase-stable cable
- DC to 50 GHz 2.4 mm E-Calibration module

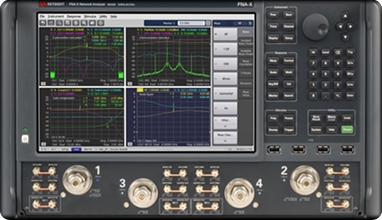

PNA Microwave Network Analyzer N5225B
Measurement case
- USB3.1 C-Type Connector (Super Speed Plus, 10Gbps) Compliance Test
- Automotive Ethernet Communication Wiring, Connectors (TC2, TC9)
- PCI Express Interface (~Gen5) Transmission Characteristics
- High Speed FPC/FFC Connector
- COM (Computer on Module) Express Interface Transmission Characteristics
- B2B, B2C Connector/Cable
- High Speed Ethernet Interface

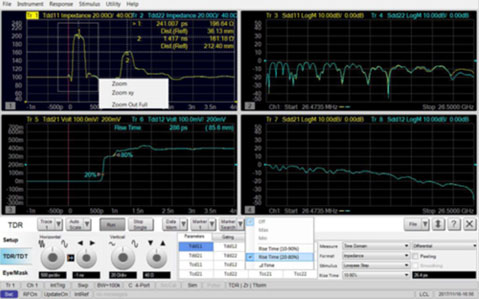

Enhanced TDR, Advanced Waveform Measurements
-
- TDR/TDT
-
For single-ended, differential, and mode conversion
Time domain impedance and TDT
-

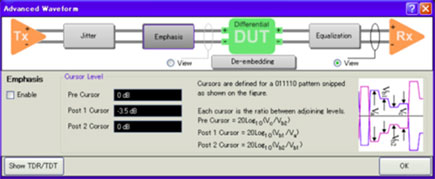

- Advanced Waveform
- Waveform condition test to find the optimal emphasis and equalization setting value for Gbps-class high-speed digital channel link
Deembedding
- Holding a patent for the test fixture extraction method for de-embedding
- Provides precise de-embedding results with improved accuracy of existing de-embedding methods
